NRS Frame Anchor System with 2:1

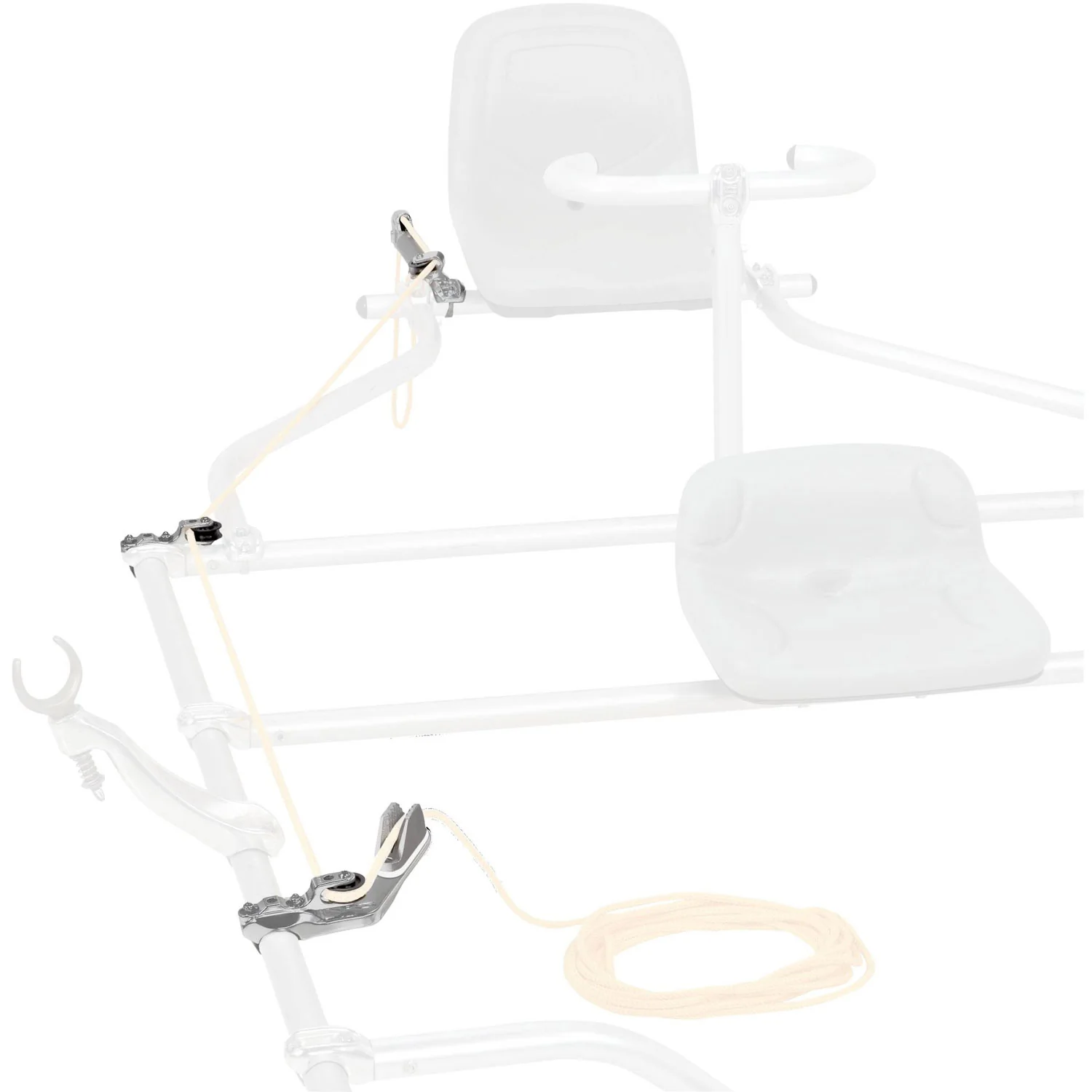

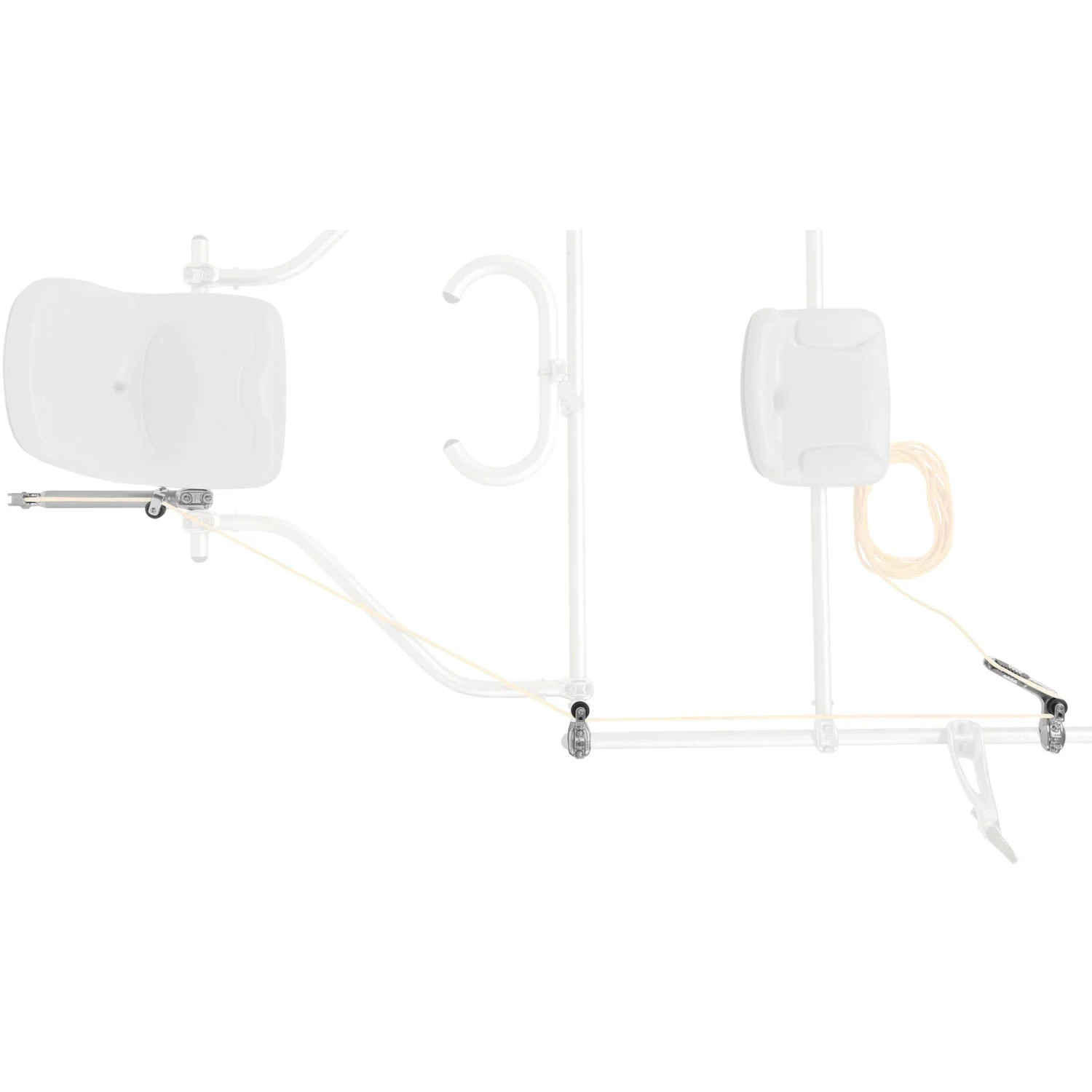

Raise or lower your anchor seamlessly without leaving the guide seat or breaking a sweat. The multi-craft NRS Frame Anchor System with 2:1 can attach to rafting frame bars and drop rails and yokes on Catarafts. This system mounts easily and the 2:1 system enhances ease of operation.

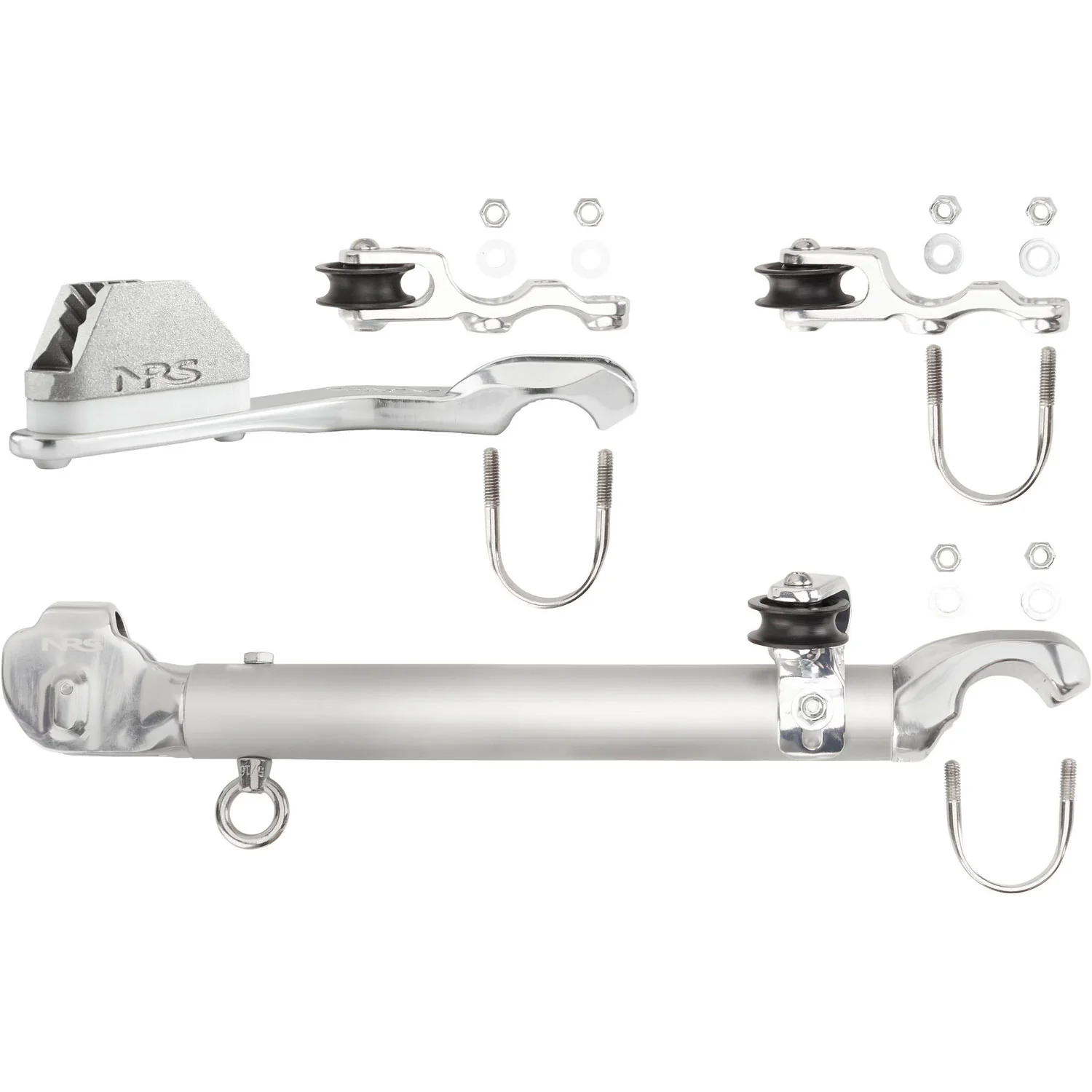

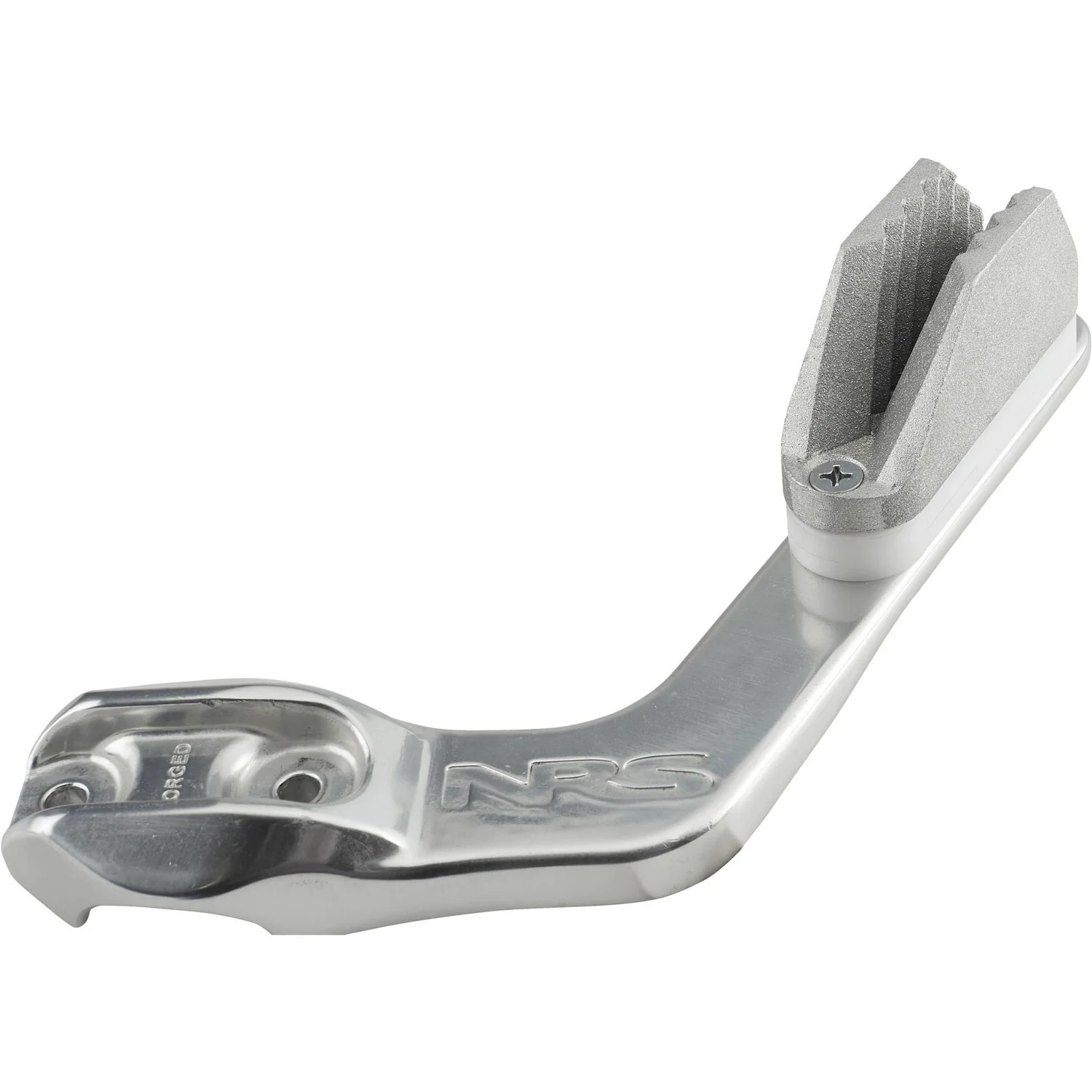

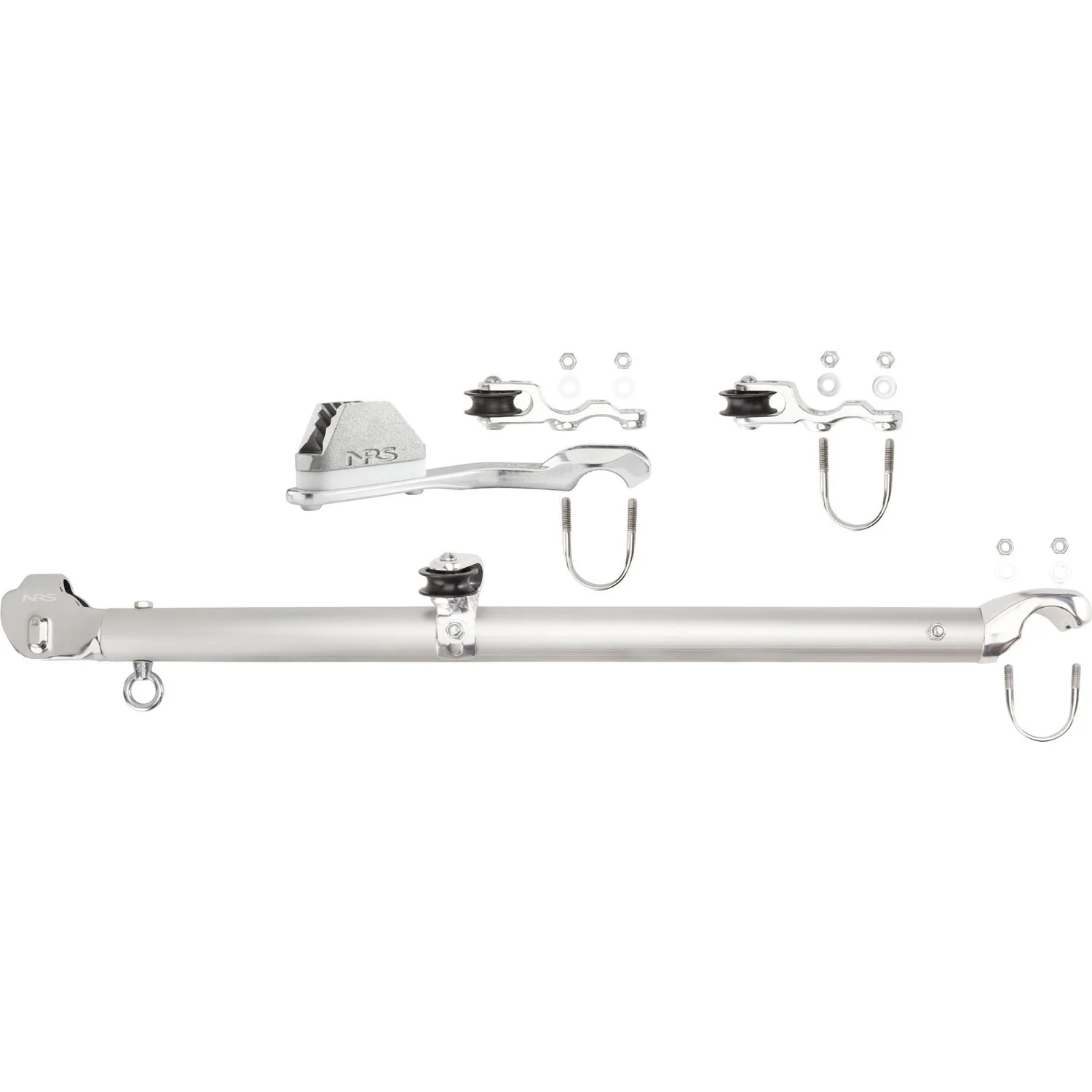

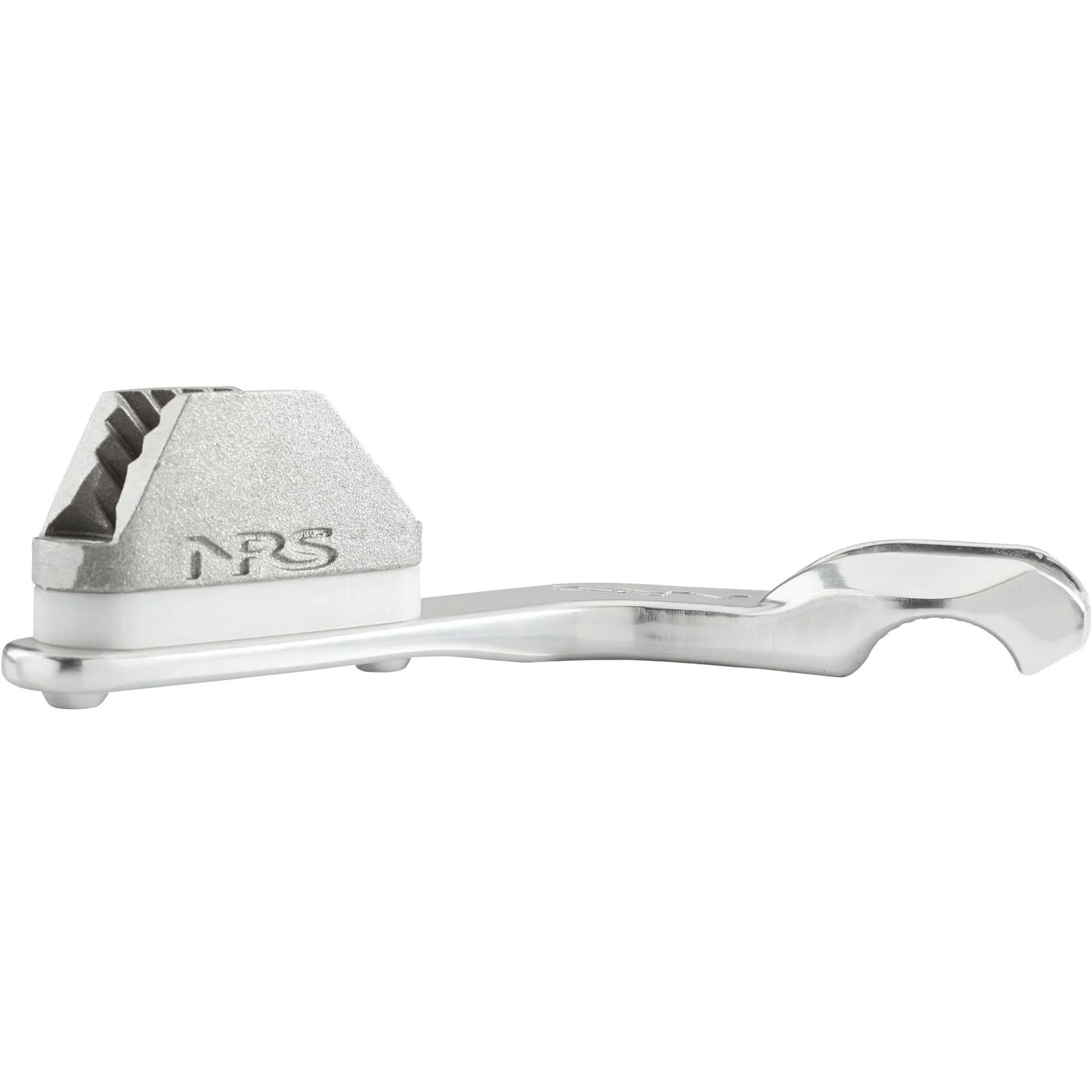

• Three main components, a remote bracket with jam cleat and intermediate pulley, create a 2:1 mechanical advantage, halving anchor weight when dropped or lowered.

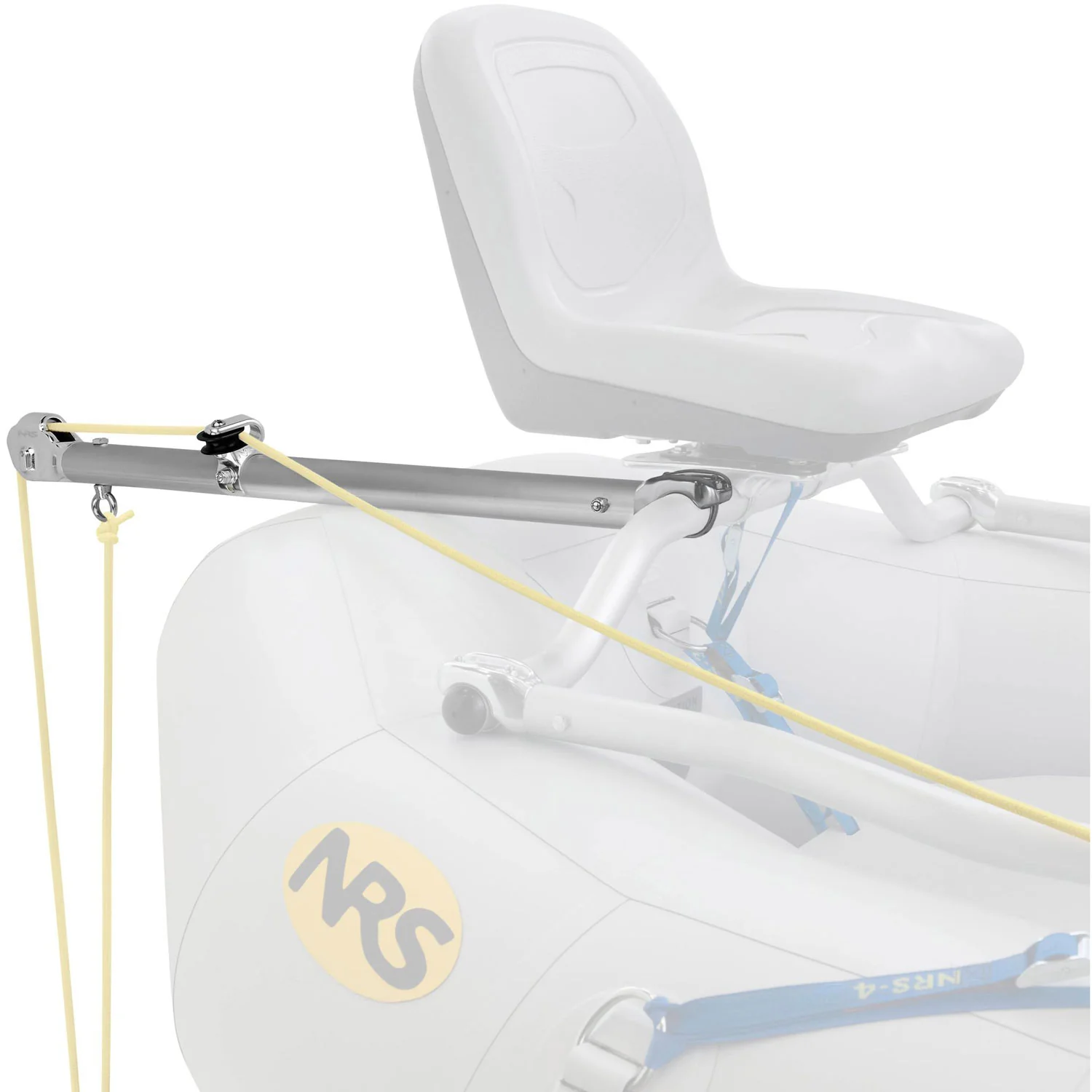

• The stern pulley on the mast is slotted to allow for angle adjustment depending on the amount of kick the craft has. It is preset for maximum kick. For a flatter angle, loosen the bolt and nut and adjust to the desired angle and tighten.
• Includes standard U-bolt and oversized U-bolt with nuts and washers.
• The 31" Long Mast with Forged LoPro Anchor System is a great addition to the Dodger Stern Seat Mount, Item #92016.03. The extra length extends the anchor comfortably past the stern of your Otter Fishing Dodger XL Raft. Includes the Anchor Control System and Intermediate Pulley for Forged LoPro.
• Unlike previous anchor systems, this system works with both the older cast aluminum LoPros and current forged LoPros. The oversized U-bolt works best with the forged LoPros, while the standard U-bolt is best for the cast aluminum.
• The intermediate pulley, item # 94047.01.100, is designed to nest on top of forged LoPros. For cast LoPro frames, simply U-bolt the intermediate to the siderail.
• Rope and anchor sold separately.
• We recommend 3/8" double braided nylon anchor rope.
